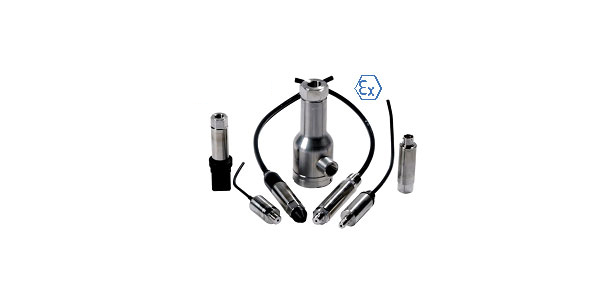

Features

• Ranges from 70 mbar (1 psi) to 700 bar (10000 psi)

• Accuracy to ±0.04% Full Scale (FS) Best Straight Line (BSL)

• Stainless Steel construction

• Frequency response to 3.5 kHz

• High over pressure capability

• Hazardous Area certifications

• mV, mA, voltage and configurable voltage outputs

• Multiple electrical & pressure connector options

• Operating temperature ranges from –55 to +125°C (-67 to +257°F)

• Online configuration tool

Step and ramp mA output: Simply configured for simulating transmitter outputs into control loops, testing valve positioners and checking safety systems. The function has programmable end points, manual or automatic sequencing and the following options for quick set-up.

Features

• % step: The step size is defined as a percentage

• Defined step in mA.

• Span check: Toggles between two end points, for example, 4 and 20 mA for checking zero and FS.

• Ramp: A linear ramp between two end points with programmable travel and dwell times is perfect for dynamically testing switches.

• Nudge: Simply used to make a small incremental change to a mA output using up/down keys Switch test

• Pressure leak

• Max/min: Captures maximum and minimum values and calculates the mean.

• Relief valve: Captures the venting pressure of a relief valve.

• Scaling: Scales the measured value into a process value.

• Pressure Resolution: Adjustable from four to seven digits.

Applications

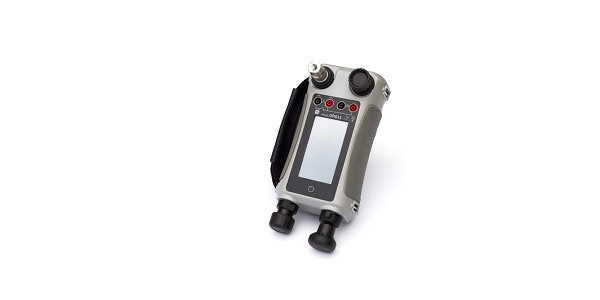

• 50% smaller and 33% lighter than the DPI 610

• Generates 0 to 20 bar/300 psi in less than 30 seconds

• Creates 95% vacuum

• Pressure measurement is twice as accurate

• Three times better electrical accuracy

• Simplified touch screen interface with application DASHBOARD, quick TASK selection and FAVOURITES storage

• Fast, three touch set-up for any application

• Calculates PASS/FAIL errors, documents results and interfaces with calibration software
